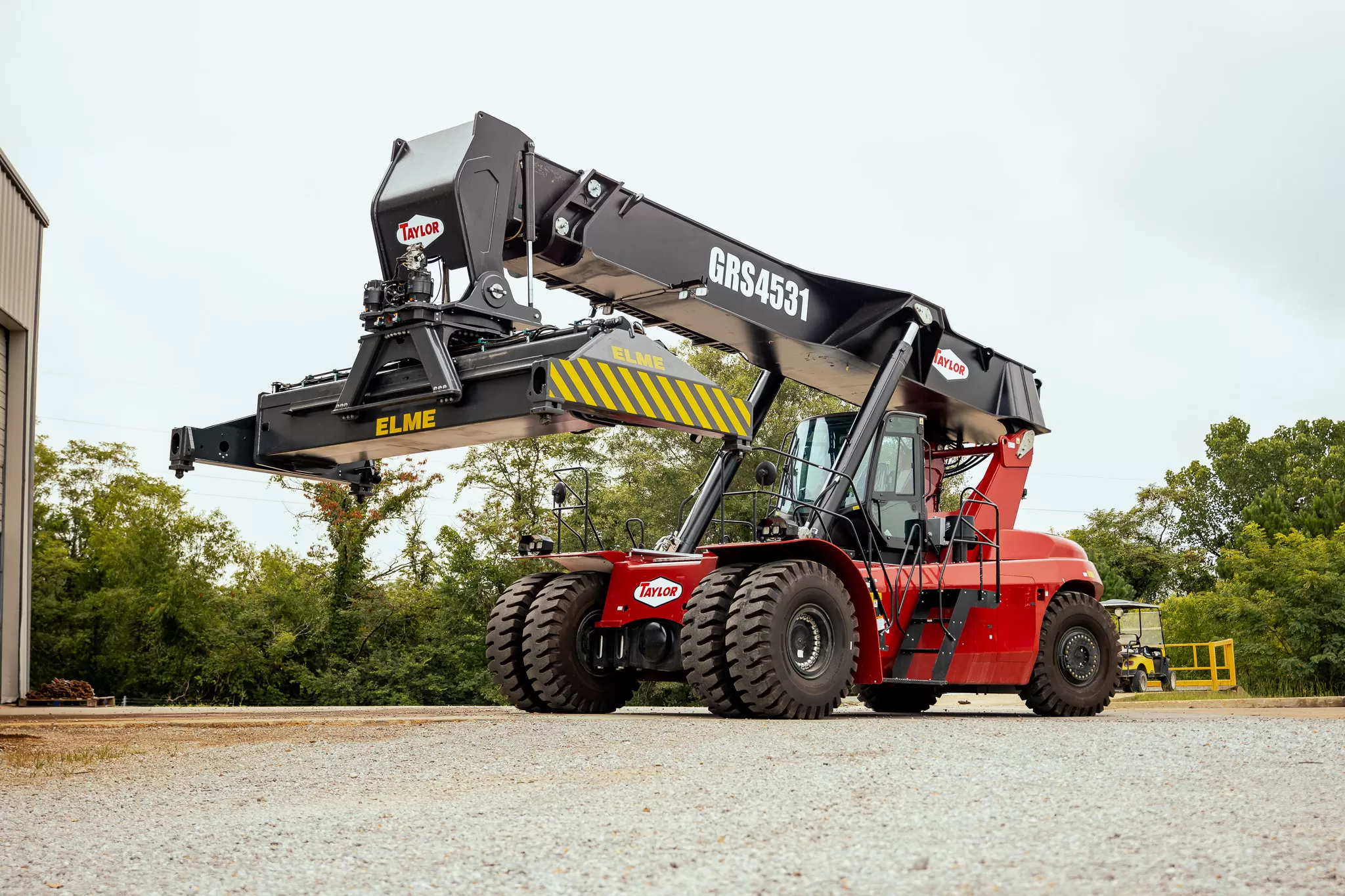

GRS-4531
Container Handler

Standard Features: GRS-4531

• Powered moving cab
• Sunshade
• Reading light
• Speed-adjustable wiper
• Heat and air conditioning
• Radio
• Adjustable Steering wheel
• Multi-directional armrest adjustment
• Operator presence (OPS)
• Pneumatic tires
• Donaldson dual stage air filter
• Traction control
• Vehicle toolkit
• Fully hydraulic power steering
• Load-sensing hydraulic system
• Independent brake oil circuit
• Independent brake oil cooling
• Independent hydraulic oil cooling
• Torque converter oil temperature management
• Vehicle LED lights
• Main power disconnect switch
• 6-sensor reverse radar (3m)
• Color LCD
• Reverse alarm
• Air horn
• 24V CANbus communication
• Spreader twist-lock interlock
• Power on-demand
• Proportional spreader control
• Dynamic anti-tipping protection (LMI)
• Vertical lift control
• Spreader sway prevention
• Light load high-speed lifting
• Lighting control system
• Electrical safety protection
• Maintenance Indicator
• Fault diagnosis system
• Twist-lock counter

Options:

• Solid tires
• Tire pressure monitoring
• Spark arrester
• Fire extinguisher
• Engine block heater
• Twist-lock camera
• Four-channel driving monitoring system
• Container weighing system
• Vision+

Vehicle Information Package

• Operators Guide
• Maintenance and Service documentation including key circuit drawings
• (Serial Number Specific Parts Book is available upon request)

Vehicle Cooling

• Electric fans are used independently to cool hydraulic and brake oil to meet high ambient requirements.
• Torque converter oil temperature control management ensures that the gearbox operates within the optimal temperature range.
• High-power bar-fin heat exchangers and suction fans are used for charge-air and jacket water cooling to meet high ambient requirements.

Appearance & Performance

• Streamlined design of the vehicle presents an elegant and sturdy profile.
• The optimized counterweight contour significantly reduces the turning radius of the vehicle, and increases the side and rear views.
• Handrails and anti-skid surfaces ensure safe access to the machine.

Fully-Suspended All-Round Vision Cab

• The fully-suspended cab can be repaired and maintained easily, override switch allows manual movement of the cabin with power loss.
• Sound and heat insulation shield vibration and noise.
• Large curved front and rear windows, all-glass left and right doors, and a large glass skylight enhance visibility.
• Tilt and telescopic steering column, fully-suspended adjustable seat with high-back and safety belt, and OPS Operator Presence System.
• Heat, defrost, and air-conditioning with dual ventilation modes, sun shades, and adjustable wipers enhance operator comfort.

Safety System

• 24V electrical system, 110A alternator, main power disconnect switch, and emergency shutdown switch.
• Advanced CAN bus communication is used to monitor the status of the engine, transmission, spreader, and vehicle, with fault protection. The data is displayed on a high-definition color screen, easily viewed by the operator.
• Dynamic anti-tipping protection (LMI)
• Load indicator:
• green (indicating normal operation)
• orange (indicating warning)
• red (indicating action required)
• Display: twist lock status, boom length, actual load, maximum load, boom height, boom angle, extension, load percentage bar, alarm code, etc.
• Centrally controlled lighting system, integrated switch panel, and ergonomic layout enable comfortable and easy operation.
• The CAN bus controls allow short-circuit and open-circuit diagnosis of LED lighting.
