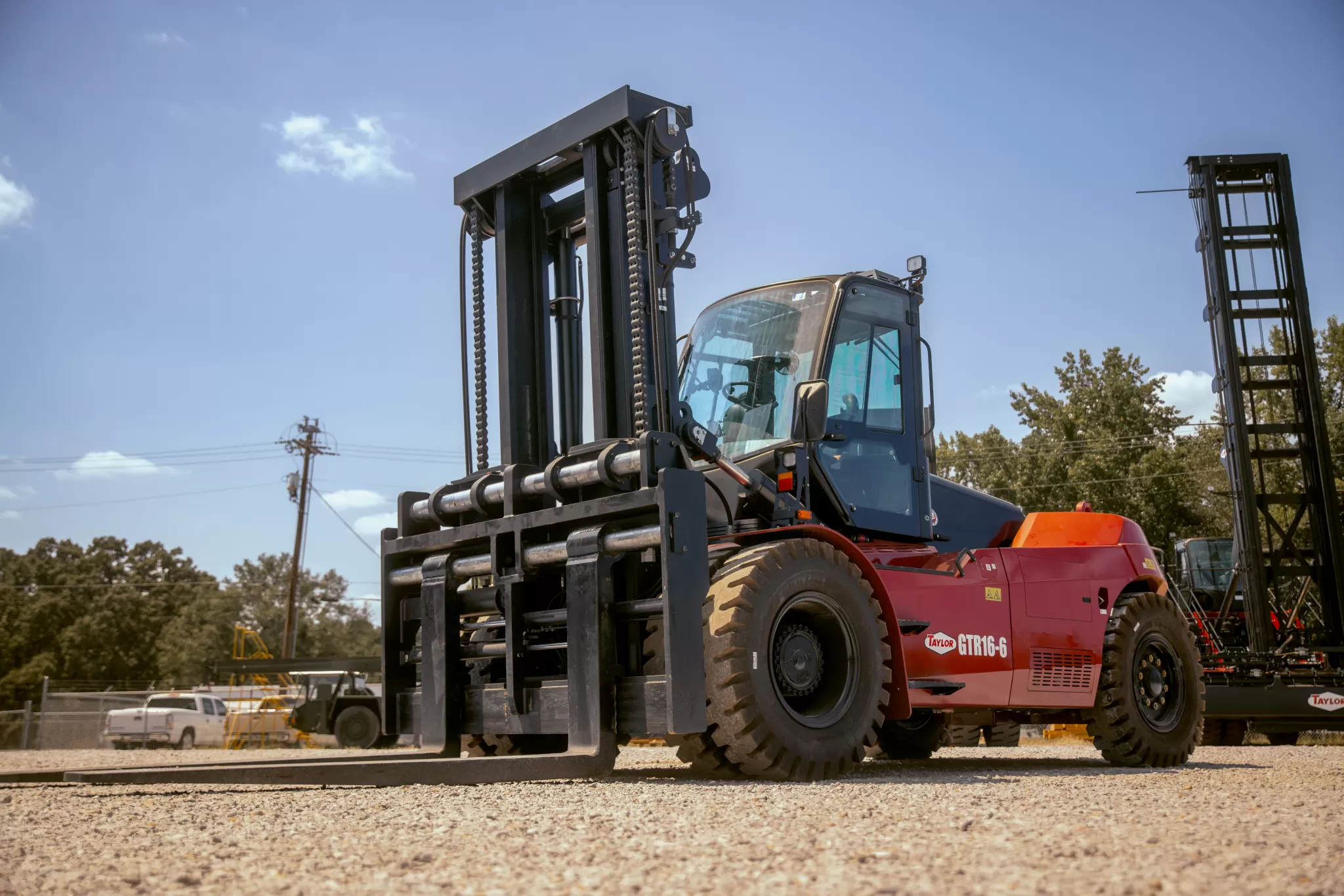

GTR16-6
Pneumatic Tire Forklift

Standard Features: GTR16-6

• Limited Free Lift 2 Stage Mast
• Hydraulic Adjustment
• Standard Fork
• Full Cabin
• Air Conditioner & Heater
• Fully Hydraulic Power Steering
• Four-Function Valve
• Operator Presence Sensing System (OPS)
• Multi-Directional Adjustable Armrest
• Adjustable Steering Wheel
• Lifting Hydraulic System Speed Limit Valve
• Tow Device
• Main Power Disconnect Switch
• Reverse Camera
• LCD Instrument Display
• Neutral Indicator
• Parking Braking Indicator
• Charge Indicator
• Pre-heating Indicator
• Engine Oil Pressure Alarm
• Air Filter Alarm
• Low Pressure Alarm for the Accumulator
• Hydraulic Oil Filter Alarm
• Oil-Water Separator Alarm
• Engine Failure Alarm
• LED Lights
• Coolant Temperature Gauge
• Oil Gauge
• Oil Temperature Gauge
• Engine Hour Meter
• Pneumatic Tires
• Reverse Alarm
• Manual Cabin Tilting
• Toolkit

Options:

• Customized Color
• Various Fork Sizes
• Various Mast Specifications
• Solid Pneumatic Tires
• On-Board Intercom
• Reverse Alarm
• Strobe Light
• Front & Rear-view Camera (with optional memory)
• Ground Strap
• Fire Extinguisher (4.4lb/8.7lb)
• Mast Mounted LED Working Light
• Speed limiter
• Blue Light
• Scale
• Air Pre-Cleaner
• Operator Fan
• Power Cabin Tilting
• Five Function Hydraulic Valve

Fully-Suspended Cab

• The fully-suspended, tilting cab can be repaired and maintained easily
• Sound and heat insulation shield vibration and noise
• Large curved front and rear windows, all-glass left and right doors, and large glass sky-light enhance visibility
• Tilt and telescopic steering column, full suspension adjustable seat with a high backrest, safety belt, and OPS (Operator Presence System)
• Heat, defrost, and air-conditioning with dual ventilation modes, sun shades, and adjustable wipers enhance operator comfort

Safety

• Equipped with mechanical and electrical protection devices, lifting interruption control, OPS system, travel speed limiting, and other functions ensure safe operations
• Bright LED operator display
• A visual reversing radar is provided for the standard configuration and other options such as an automatic fire extinguishing system, tire pressure monitoring, overload protection, etc. can be provided

Comfortable

• The instruments with high-definition color screens display the truck status in real time and the fault alarm enable easier maintenance
• The new generation electronically-controlled transmission enables flexible, smooth, and comfortable gear shifting

Efficient

• Single joystick control
• Higher lifting speed and faster dynamic response enable the operation efficiency to be effectively improved
• Easy maintenance with a wide-opened hood, large-space electric control box, large cab space, multiple hydraulic inspection points, easy access to the oil and water during inspection, and built-in diagnostic and query functions
